Optoelectronic display industry

Acid-resistant film series

Introduction to Acid-resistant film series products

Product Features

Using Minglan polyvinyl chloride(PVC) film as the base material, and the back of the film is coated with a special coating and then applied with a weather-resistant special adhesive

The protective glass is resistant to HF and HCL and is not corroded, and the protective glass is clean and does not residue when peeled off

Design and development for flat panel displays, touch screens, and high-standard processes

In particular, it has industry-leading technical advantages in key process solutions such as yellow light etching production lines, OGS back-end production line, medium and large size full lamination, AP+AS coating, etc

This PVC acid-resistant film uses 80-190UM thick PVC as the base material, the glue layer is 9-12um thick rubber glue, and the release material is 25u PET as the release film

Product Application

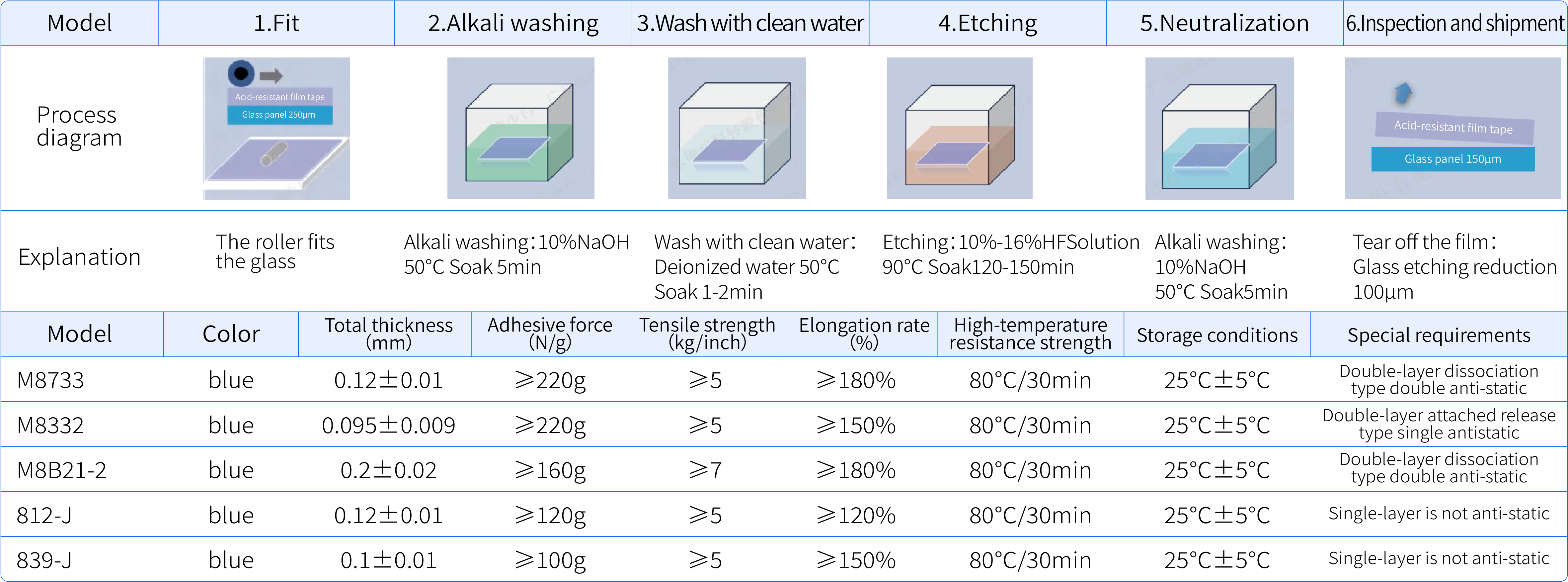

Suitable for the optoelectronic industry, and is used in glass panel and OLED panel etching thinning protection and selective etching protection

While protecting the panel manufacturing process, peeling will not produce large voltage to break down the sticker, which effectively improves the thinning efficiency and yield rate.

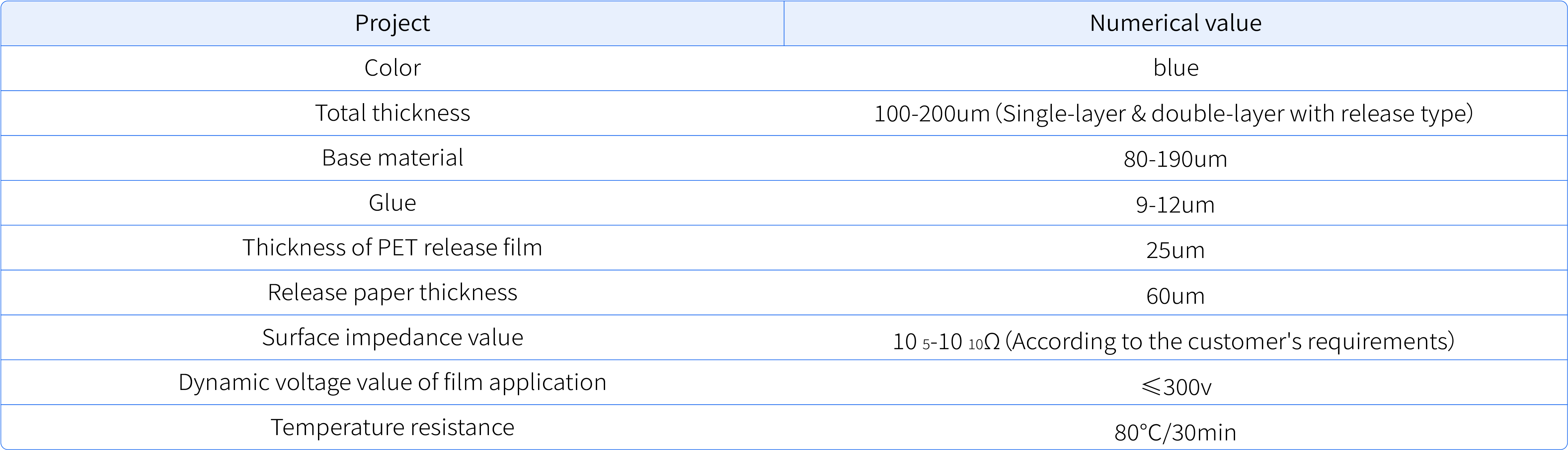

Product Specification
